Home >> Kia >> 2012 >> Rio LX, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Rear Wheel Speed Sensor >> Components and Components Location >> Components

Components and Components Location: Components

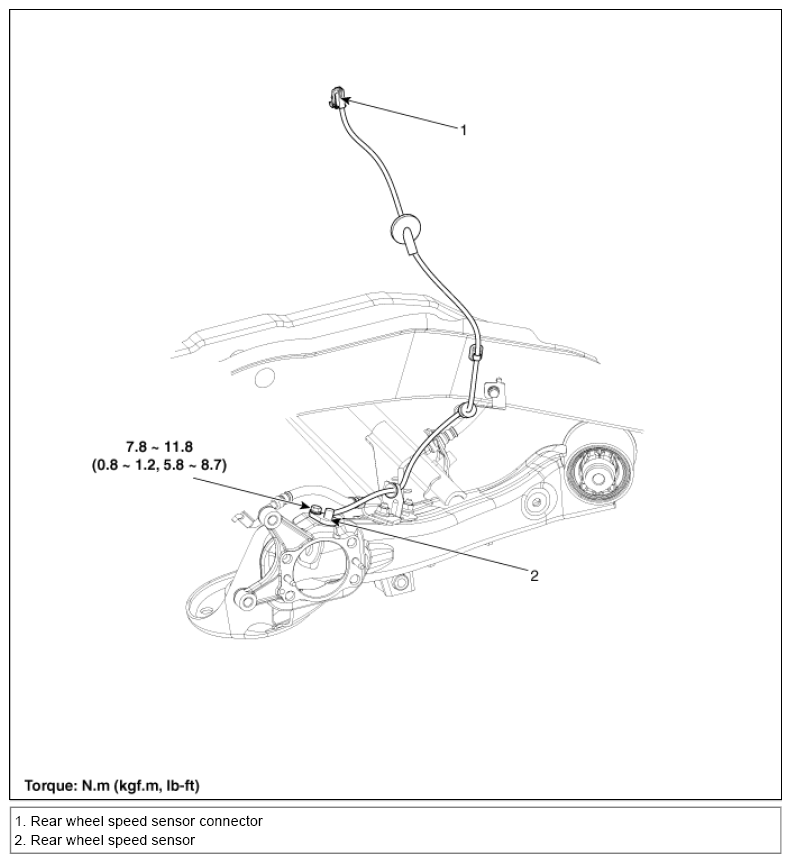

Fig 1: Rear Wheel Speed Sensor And Connector With Torque Specifications

G08322326

Courtesy of KIA MOTORS AMERICA, INC.
