Overhead Console Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trip pieces to without marring the surface.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the overhead console cover (A).

Fig 1: Identifying Overhead Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the overhead console assembly (A).

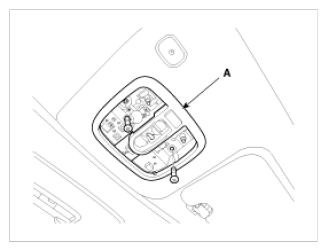

Fig 2: Identifying Overhead Console Assembly And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).

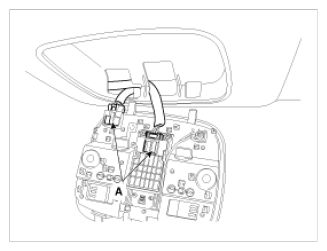

Fig 3: Identifying Overhead Console Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is connected properly.
