Heater Control Unit Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

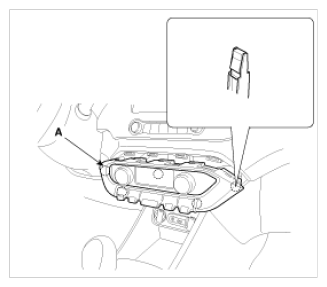

Using a screwdriver or remover, remove the heater control unit (A).

Fig 1: Identifying Heater Control Unit
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A) and hose (B).

Fig 2: Identifying Heater Control Unit Connectors And Hose
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
