Cluster Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

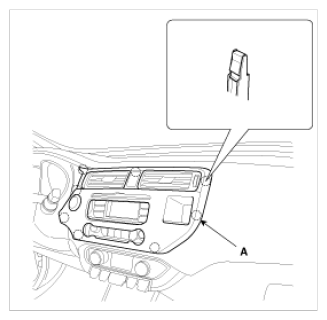

Using a screwdriver or remover, remove the center fascia panel (A).

Fig 1: Identifying Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

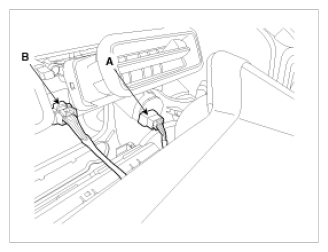

Disconnect the start/stop button connector (A) and hazard switch connector (B).

Fig 2: Identifying Start/Stop Button Connector And Hazard Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

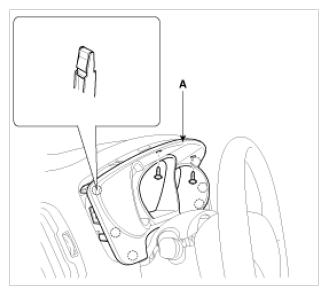

Using a screwdriver or remover, remove the cluster fascia panel (A).

Fig 3: Identifying Cluster Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

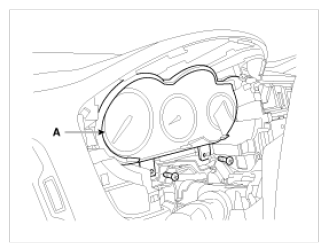

After loosening the mounting screws, then remove the cluster assembly (A).

Fig 4: Identifying Cluster Assembly And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

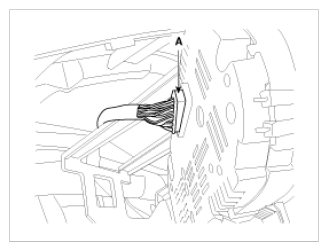

Disconnect the cluster connector (A).

Fig 5: Identifying Cluster Connector
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damage clips.
