FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

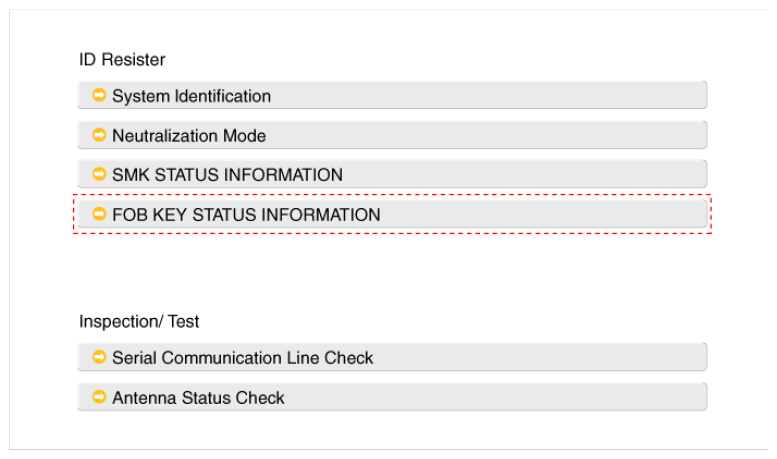

    Fig 1: Selecting FOB KEY STATUS INFO
    G08322867Courtesy of KIA MOTORS AMERICA, INC.

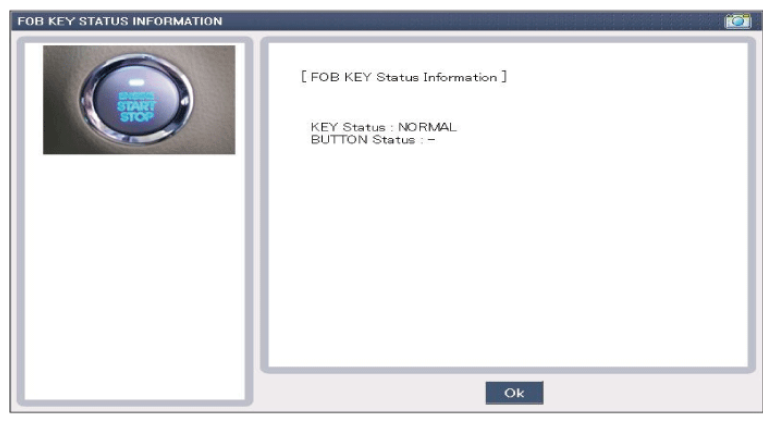

    Fig 2: Screen Display - FOB KEY STATUS INFORMATION
    G08322868Courtesy of KIA MOTORS AMERICA, INC.
