Components and Components Location: Components: Notes

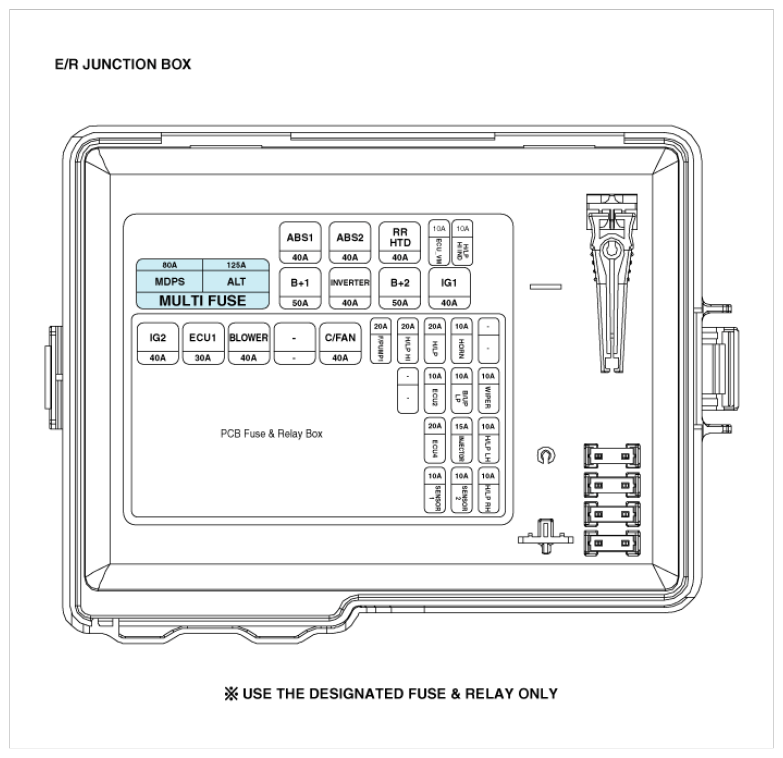

RELAY BOX CIRCUIT FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | |
|---|---|---|---|
| MULTI FUSE | MDPS | 80A | EPS Control Module |
| ALT | 125A | Alternator | |
| FUSE | B+1 | 50A | I/P Junction Box (Power Connector Fuse: ROOM LP 10A / AUDIO 20A, Fuse: FOG LP FRT 15A / MODULE 1 10A / STOP LP 15A, Tail Lamp Relay) |
| INVERTER | 40A | Inverter | |
| B+2 | 50A | I/P Junction Box (Fuse L HAZARD 15A / PDM 1 25A / PDM 2 10A / SUNROOF 15A / DR LOCK 20A / SAFETY POWER WINDOW 25A / S/HEATER 2 15A, FOLD'G MIRR 10A / Power Window Relay) | |
| IG1 | 40A | With Smart Key - PDM Relay Box (ESCL (ACC) Relay, ESCL (IGI) Relay) W\O Smart Key - Ignition Switch |
|
| ABS1 | 40A | ESC Module, Multipurpose Check Connector | |
| ABS2 | 40A | ESC Module | |
| RR HTD | 40A | I/P Junction Box (Rear Defogger Relay) | |
| ECU_VM | 10A | PCM | |
| H/LP HI IND | 10A | Instrument Cluster | |
* USE THE DESIGNATED FUSE & RELAY ONLY
