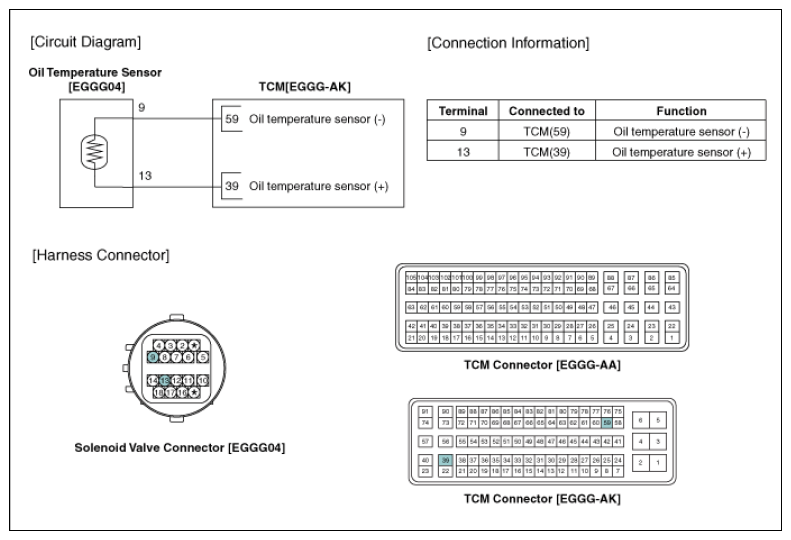

Home >> Kia >> 2012 >> Rio EX, 4D Hatchback >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Transaxle Oil Temperature Sensor >> Schematic Diagrams >> Circuit Diagram
