Repair procedures: Replacement

Remove the front wheel & tire.
Tightening torque:

88.3 ~ 107.9N.m(9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

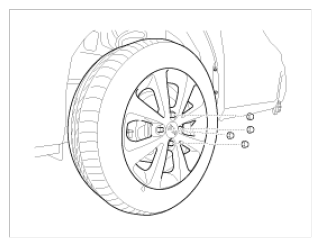

Fig 1: Identifying Front Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
Remove the brake hose bracket (A) and the wheel speed sensor bracket (B) from the front strut assembly by loosening the mounting bolts.
Tightening torque:

(B.C.) 7.8 ~ 11.8N.m(0.8 ~ 1.2kgf.m, 5.8 ~ 8.7lb-ft)

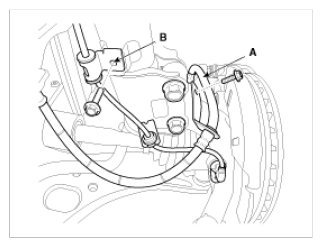

Fig 2: Identifying Brake Hose And Wheel Speed Sensor Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7N.m(10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

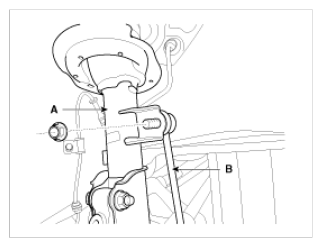

Fig 3: Identifying Stabilizer Link And Front Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cover (A) and loosen the strut mounting nut (B).
Tightening torque:

49.0 ~ 58.8N.m(5.0 ~ 6.0kgf.m, 36.2 ~ 43.4lb-ft)

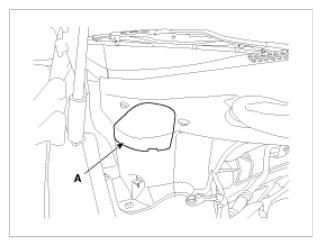

Fig 4: Identifying Cover
Courtesy of KIA MOTORS AMERICA, INC.

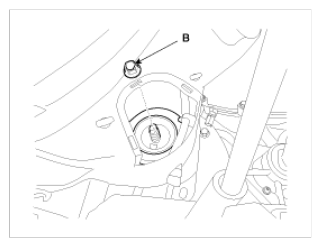

Fig 5: Identifying Strut Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front strut assembly (A) with the front axle (B) by loosening the bolt & nut.
Tightening torque:

137.3 ~ 156.9N.m(14.0 ~ 16.0kgf.m, 101.3 ~ 115.7lb-ft)

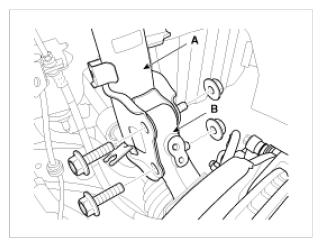

Fig 6: Identifying Front Strut Assembly And Front Axle
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
CAUTION:
- Tighten with specified torque at curb position of vehicle
- Fix the strut rod and tighten the nut
