Repair procedures: Imposition

Check the front stabilizer link ball joint for damage.

• Torn boot
• Opened boot
• Displaced ring
• Deformed clamp ring
• Externally forced shock

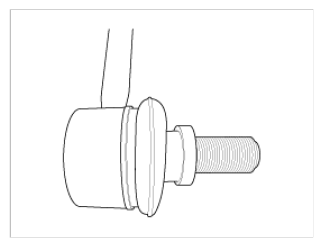

Fig 1: Checking Front Stabilizer Link Ball Joint For Damage

Courtesy of KIA MOTORS AMERICA, INC.
