Repair procedures: Replacement

Remove the front wheel & tire.
Tightening torque:

88.3 ~ 107.9N.m(9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

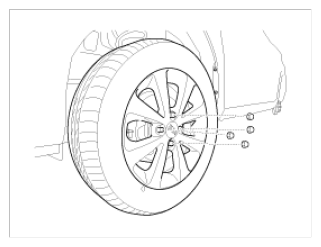

Fig 1: Identifying Front Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
Disconnect the stabilizer link with the front strut assembly after loosening the nut.
Tightening torque:

98.1 ~ 117.7N.m(10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

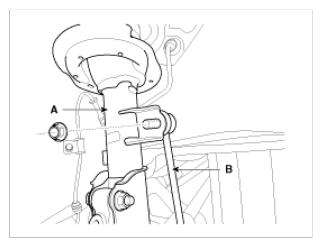

Fig 2: Identifying Stabilizer Link And Front Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the nut and then remove the tie-rod end (A) with the front axle by using SST(09568-34000).
Tightening torque:

23.5 ~ 33.3N.m(2.4 ~ 3.4kgf.m, 19.4 ~ 24.6lb-ft)

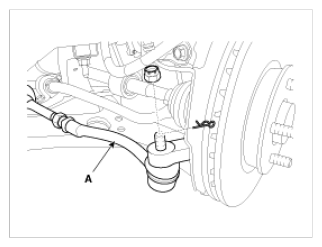

Fig 3: Identifying Tie-Rod End
Courtesy of KIA MOTORS AMERICA, INC.

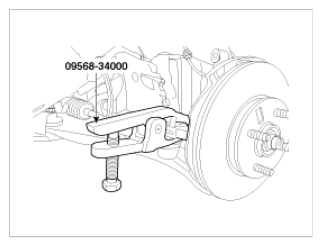

Fig 4: Removing Tie-Rod End With Front Axle Using SST(09568-34000)
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the nut and then remove the lower arm (A).
Tightening torque:

58.8 ~ 70.6N.m(6.0 ~ 7.2kgf.m, 43.4 ~ 52.1lb-ft)

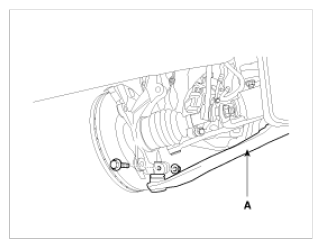

Fig 5: Identifying Lower Arm
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3 N.m(3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)

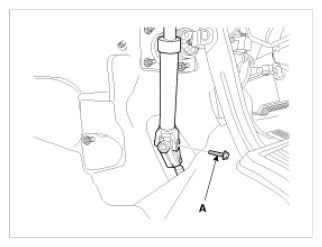

Fig 6: Identifying Bolt
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
- Must be replaced with new bolts when assembling. (SEAL-LOCK has been processed) SEAL-LOCK Specifications: MS721-39 "TYPE-D" Product: ND industries 1193S
Remove the rubber hanger (A).

Fig 7: Identifying Rubber Hanger
Courtesy of KIA MOTORS AMERICA, INC.

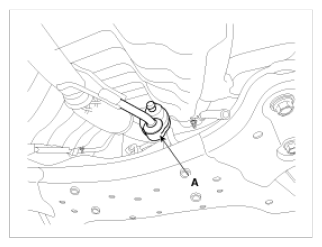

Loosening the roll rod (A) mounting bolts and nuts.
Tightening torque:

53.9 ~ 63.7N.m(5.5 ~ 6.5kgf.m, 39.8 ~ 47.0lb-ft)

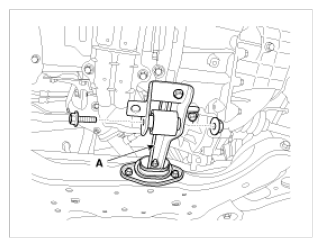

Fig 8: Identifying Roll Rod
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolts & nuts and then remove the front sub frame (A).
Tightening torque:

Sub frame mounting bolt & nut

156.9 ~ 176.5N.m(16.0 ~ 18.0kgf.m, 115.7 ~ 130.2lb-ft)

Sub frame stay mounting bolt

44.1 ~ 53.9N.m(4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)

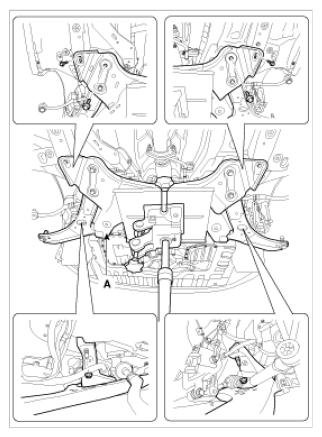

Fig 9: Identifying Front Sub Frame
Courtesy of KIA MOTORS AMERICA, INC.
Remove the stabilizer (A) from the front sub frame by loosening the mounting bolts & nuts.
Tightening torque:

44.1 ~ 53.9N.m(4.5 ~ 5.5kgf.m, 32.5 ~ 39.8lb-ft)

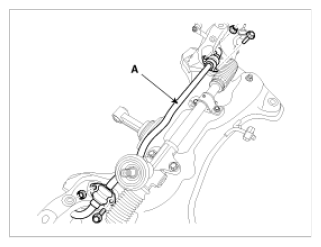

Fig 10: Identifying Front Sub Frame Stabilizer
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the stabilizer link (A) with the stabilizer bar by loosening the nut.
Tightening torque:

98.1 ~ 117.7N.m(10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

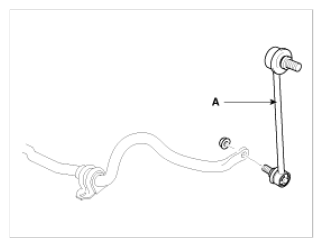

Fig 11: Identifying Stabilizer Link
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bushing (A) and the clamp (B) from the stabilizer bar.

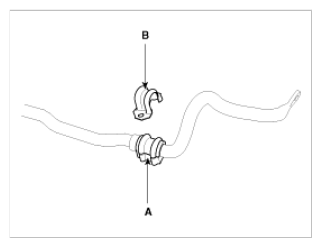

Fig 12: Identifying Stabilizer Bar Bushing And Clamp
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
