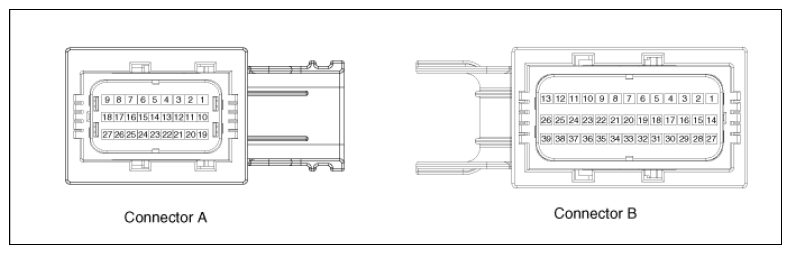

| 1 |
Ignition |
1 |
Seat belt pretensioner [Passenger] Low |
| 2 |
- |
2 |
Anchor Pretensioner [Passenger] Low |
| 3 |
(1st stage) Passenger airbag Low |
3 |
Seat belt pretensioner [Driver] Low |
| 4 |
Front impact sensor [Driver] Low |
4 |
Anchor Pretensioner [Driver] Low |
| 5 |
(2nd stage) Passenger airbag Low |
5 |
Side airbag [Driver] Low |
| 6 |
Front impact sensor [Passenger] Low |
6 |
Side airbag [Passenger] Low |
| 7 |
(1st stage) Driver airbag Low |
7 |
Curtain airbag [Passenger] Low |
| 8 |
(2nd stage) Driver airbag Low |
8 |
Curtain airbag [Driver] Low |
| 9 |
- |
9 |
- |
| 10 |
- |
10 |
- |
| 11 |
- |
11 |
- |
| 12 |
(1st stage) Passenger airbag High |
12 |
- |
| 13 |
Front impact sensor [Driver] High |
13 |
- |
| 14 |
(2nd stage) Passenger airbag High |
14 |
Seat belt pretensioner [Passenger] High |
| 15 |
Front impact sensor [Passenger] High |
15 |
Anchor Pretensioner [Passenger] High |
| 16 |
(1st stage) Driver airbag High |
16 |
Seat belt pretensioner [Driver] High |
| 17 |
(2nd stage) Driver airbag High |
17 |
Anchor Pretensioner [Driver] High |
| 18 |
- |
18 |
Side airbag [Driver] High |
| 19 |
Seat belt reminder |
19 |
Side airbag [Passenger] High |
| 20 |
- |
20 |
Curtain airbag [Passenger] High |
| 21 |
Crash Output |
21 |
Curtain airbag [Driver] High |
| 22 |
- |
22 |
- |
| 23 |
- |
23 |
- |
| 24 |
Telltale lamp |
24 |
- |
| 25 |
- |
25 |
- |
| 26 |
CAN_Low |
26 |
- |
| 27 |
CAN_High |
27 |
Seat belt buckle switch [Passenger] |
| |
|
28 |
- |
| |
|
29 |
Pressure side impact sensor [Passenger] High |
| |
|
30 |
Pressure side impact sensor [Driver] High |
| |
|
31 |
- |
| |
|
32 |
Seat belt buckle switch [Driver] |
| |
|
33 |
Pressure side impact sensor [Driver] Low |
| |
|
34 |
Pressure side impact sensor [Passenger] Low |
| |
|
35 |
Ground |
| |
|
36 |
Side impact sensor [Passenger] Low |
| |
|
37 |
Side impact sensor [Driver] Low |
| |
|
38 |
Side impact sensor [Driver] High |
| |
|
39 |
Side impact sensor [Passenger] High |
