Repair procedures: Inspection

  1. Disconnect the hood switch connector (A).

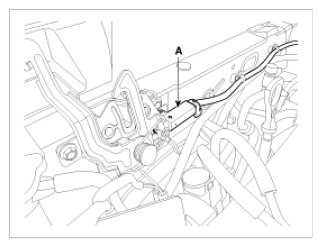

    Fig 1: Identifying Hood Switch Connector
    G08321544Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between terminals
Fig 2: Hood Switch Continuity Reference Chart
G08321545Courtesy of KIA MOTORS AMERICA, INC.
