Circuit Diagram: (A/T)

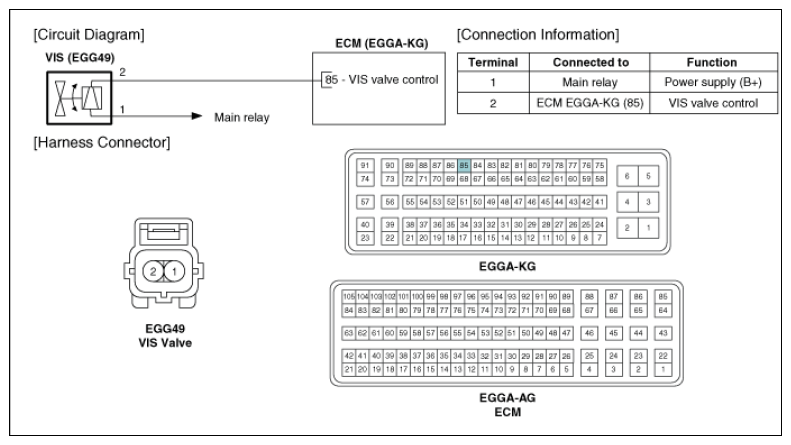

Fig 1: Variable Intake Manifold Solenoid Valve - Circuit Diagram (A/T)

G08321471

Courtesy of KIA MOTORS AMERICA, INC.
