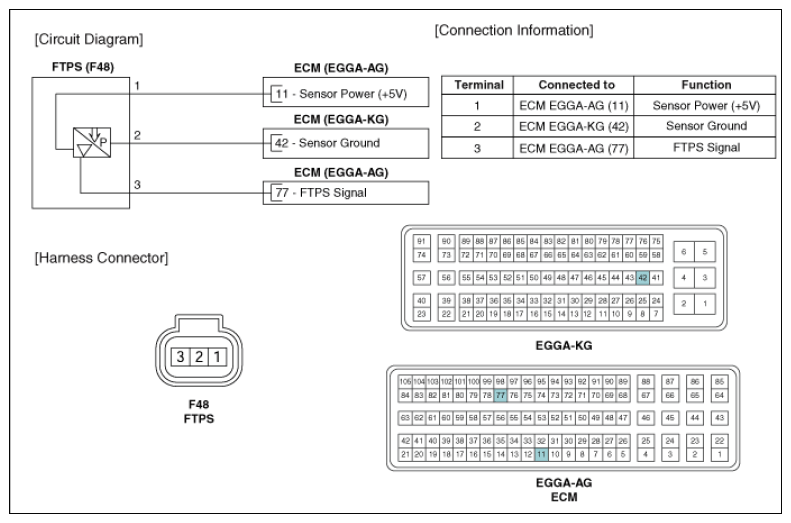

Home >> Kia >> 2012 >> Rio EX, 4D Hatchback >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Fuel Tank Pressure Sensor (FTPS) >> Schematic Diagrams >> Circuit Diagram >> (A/T)
