Circuit Diagram: (A/T)

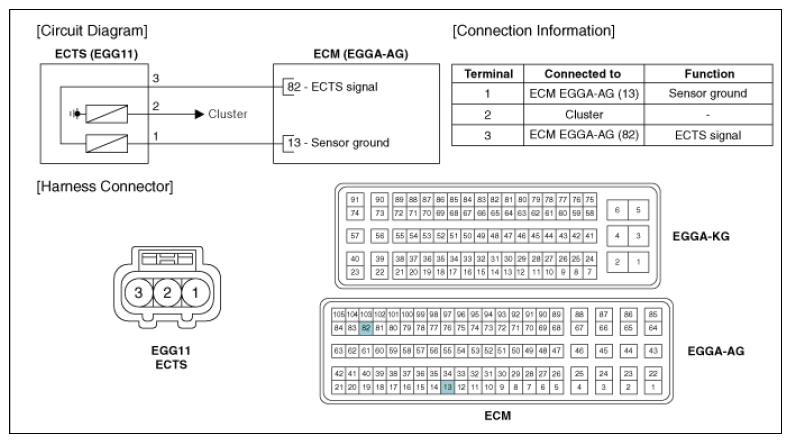

Fig 1: ECTS - Circuit Diagram (A/T)

G08321393

Courtesy of KIA MOTORS AMERICA, INC.
