Circuit Diagram: (A/T)

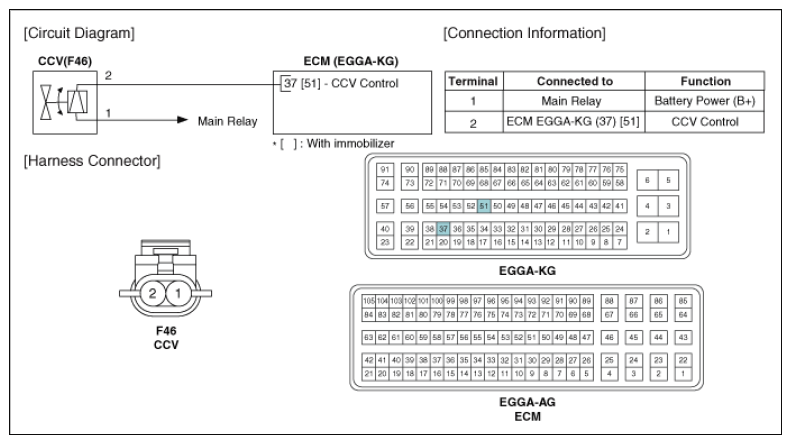

Fig 1: Canister Close Valve - Circuit Diagram (A/T)

G08321479

Courtesy of KIA MOTORS AMERICA, INC.
