Circuit Diagram: (M/T)

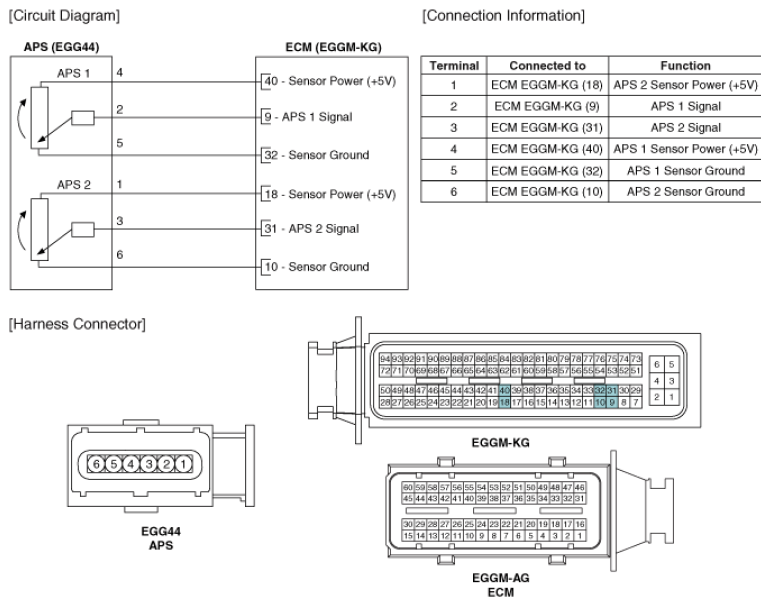

Fig 1: Accelerator Position Sensor - Circuit Diagram (M/T)

G08321431

Courtesy of KIA MOTORS AMERICA, INC.
