Driver Power Window Switch

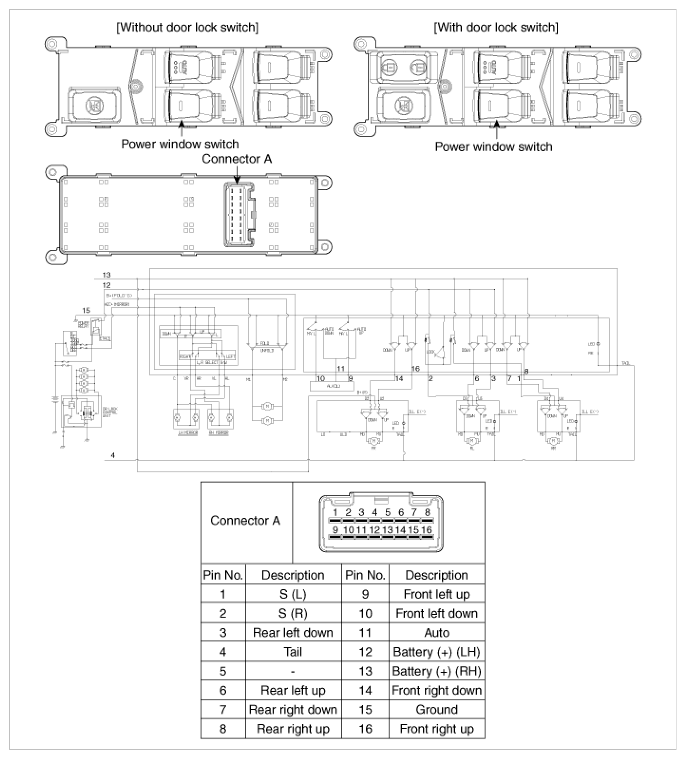

Fig 1: Driver Power Window Switch Circuit Diagram

G08323029

Courtesy of KIA MOTORS AMERICA, INC.
