Front Pillar Trim Replacement

CAUTION:

Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
Take care not to bend or scratch the trim and panels.

Using a screwdriver or remover, remove the front pillar trim (A).
CAUTION:
- Lock pin (B) is need to changed to new product surely.

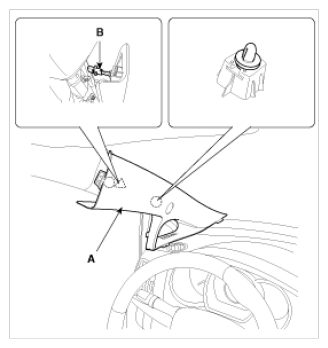

  Fig 1: Identifying Front Pillar Trim And Lock Pin
  Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the tweeter speaker connector (A).

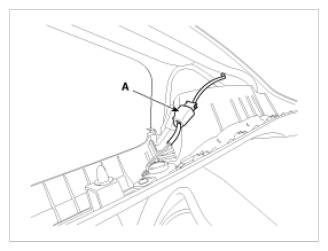

Fig 2: Identifying Tweeter Speaker Connector
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
- Make sure the connector is connected properly.
