Floor Console Replacement: [M/T]

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the gear boots (A).

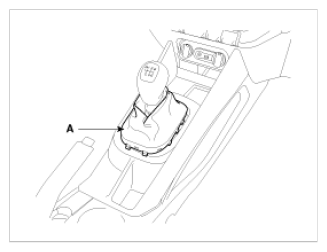

Fig 1: Identifying Gear Boots
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the console upper cover (A).

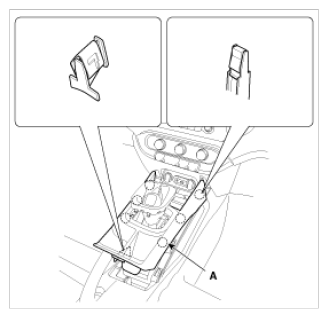

Fig 2: Identifying Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the parking brake cover (A).

Fig 3: Identifying Parking Brake Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console pad (A).

Fig 4: Identifying Floor Console Pad
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting bolts and clips, then remove the floor console assembly (A).

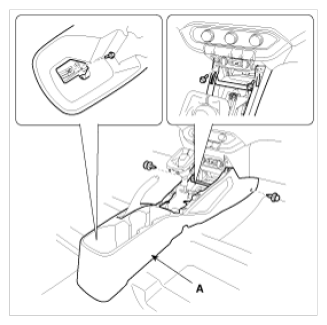

Fig 5: Identifying Floor Console Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damage clips.
