Guide Assembly Replacement

Remove the sunroof assembly.

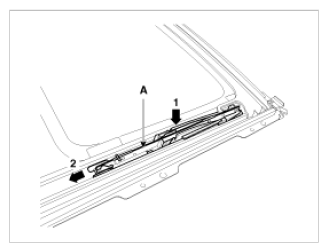

Remove a drip link assembly (A) after lowering a guide thoroughly by pushing a slide to rear.

Fig 1: Removing Drip Link Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the guide (A) and drip link (B).

Fig 2: Identifying Guide And Drip Link
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drip link stopper (B).
Remove the drip link assembly (A).

Fig 3: Identifying Drip Link Stopper And Drip Link Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
CAUTION:
- Make sure to align the slide with the center of "(A)" and "(B)"
- Make sure to initialize the motor.
Fig 4: Identifying Center Line (A) And (B)
Courtesy of KIA MOTORS AMERICA, INC.
