General Information: General Description

This is DTC which is related with communication error between BCM and other units.

Body CAN communication Control Units: BCM(Body Control Module), CLU(Cluster), SMK(Smart Key).

^*1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.

^*2 LIN (Local Interconnect Network): LIN is serial communication type which is used in electrical control system. (This is less expensive.)

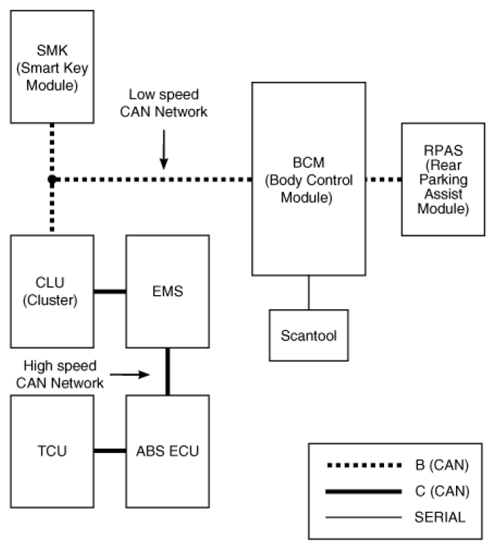

Fig 1: BCM And SMK System Diagram

Courtesy of KIA MOTORS AMERICA, INC.
