Connector C

WARNING: This page is about a different variant/trim than selected.

No	Terminal Description	Condition
C1	RR+	Speaker Output
C2	RL+	Speaker Output
C3	FR TWT+	Speaker Output
C4	FL TWT+	Speaker Output
C5	FR+	Speaker Output
C6	FL+	Speaker Output
C7	RR-	Speaker Output
C8	RL-	Speaker Output
C9	FR TWT-	Speaker Output
C10	FL TWT-	Speaker Output
C11	FR-	Speaker Output
C12	FL-	Speaker Output

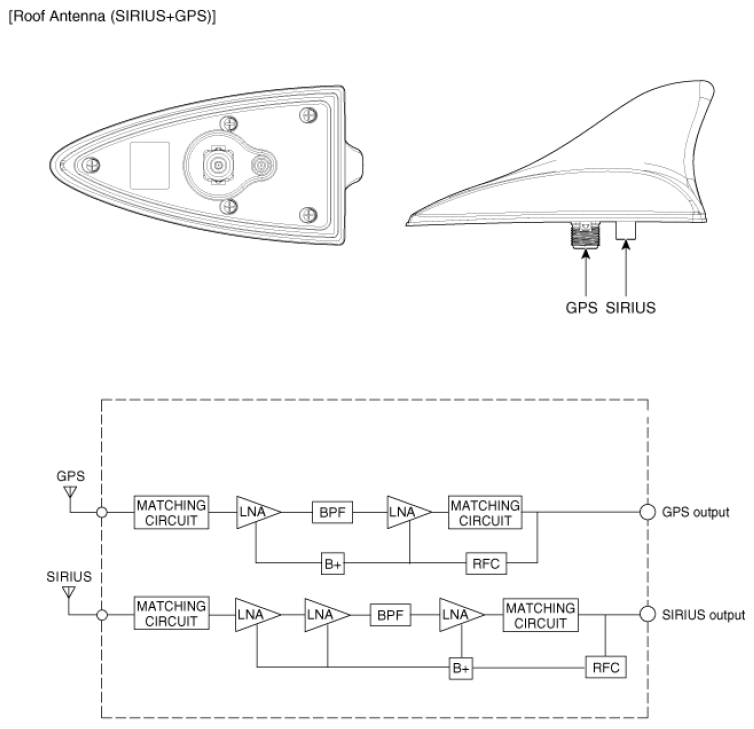

Fig 1: Roof Antenna - Circuit Diagram (Sirius And GPS)

Courtesy of KIA MOTORS AMERICA, INC.
