Repair Procedures: Inspection

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Remove the room lamp assembly connector then check for continuity between terminals.

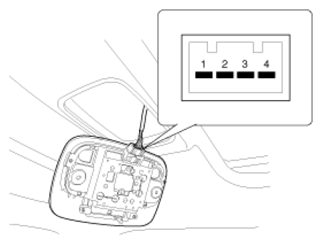

Fig 1: Room Lamp Assembly Connector End View
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Room Lamp Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Room Lamp Switch Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
