Repair Procedures: Inspection

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
Refer to "CRASH PAD ".
Remove the crash pad side switch assembly (A) after loosening 2 screws.

Fig 1: Identifying Crash Pad Side Switch Assembly & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Put on gloves to protect your hands.

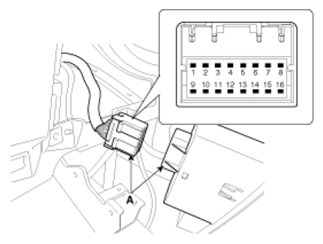

Remove the side crash pad switch after disconnecting the connectors (A).

Fig 2: Side Crash Pad Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Operate the switch and check for continuity between terminals with an ohmmeter.

Fig 3: Side Crash Pad Switch Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
