Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the center fascia panel (A).
Refer to CENTER FASCIA PANEL REPLACEMENT .

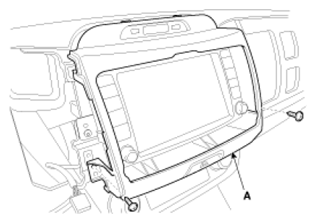

Fig 1: Identifying Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Take care not to damage and scratch the center fascia panel and its related parts.
Apply the protective tapes to the center fascia panel and its related parts.
Disconnect the hazard switch unit connector (A).

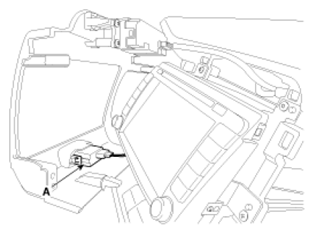

Fig 2: Identifying Hazard Switch Unit Connector
Courtesy of KIA MOTORS AMERICA, INC.
If the hazard lamp switch is not as specified, replace it carefully and take care not to damage the hook (A).

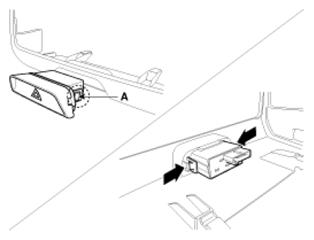

Fig 3: Identifying Hazard Switch Hooks

Courtesy of KIA MOTORS AMERICA, INC.
