Repair Procedures: Inspection

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the switch and check for continuity between terminals with an ohmmeter.

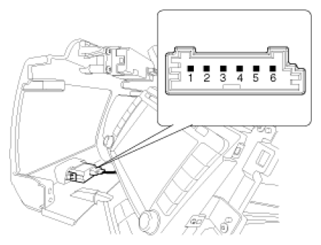

Fig 1: Hazard Lamp Switch Connector End View
G07424984Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Hazard Lamp Switch Continuity Chart
G07424985Courtesy of KIA MOTORS AMERICA, INC.
