Passenger/Rear Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim panel.
Refer to FRONT DOOR .
Disconnect the connector from the switch.

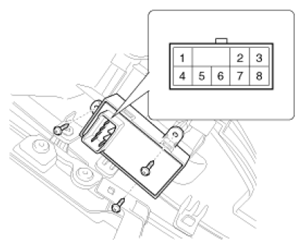

Fig 1: Passenger/Rear Power Window Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

Fig 2: Passenger/Rear Power Window Switch Terminal Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
