Audio System - Except HEV
>>
Troubleshooting
>>
Chart 1
Chart 1

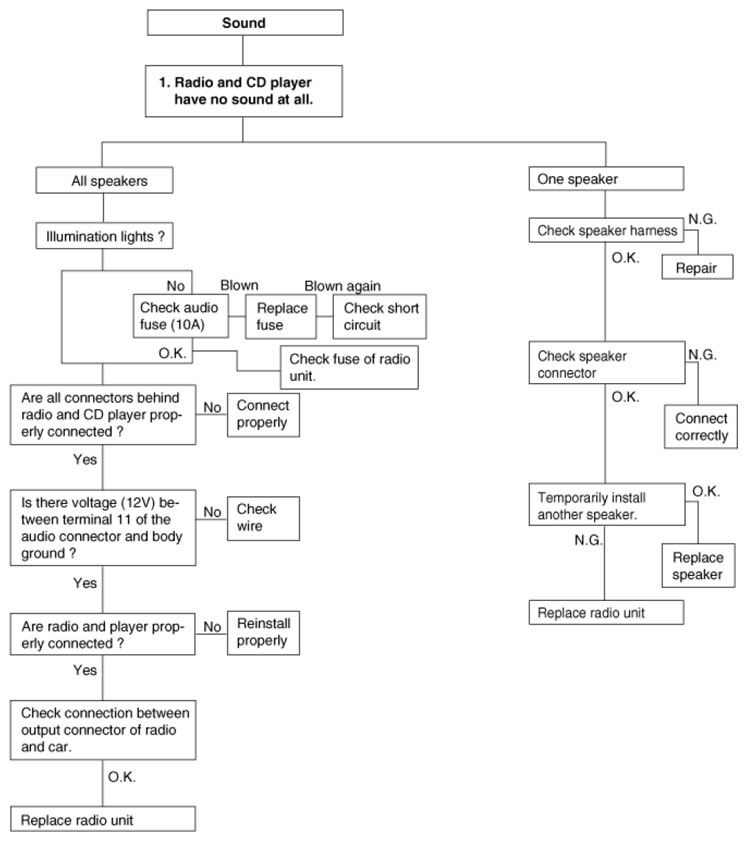

Fig 1: Customer Complaint Analysis Flow Chart - Chart 1 (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

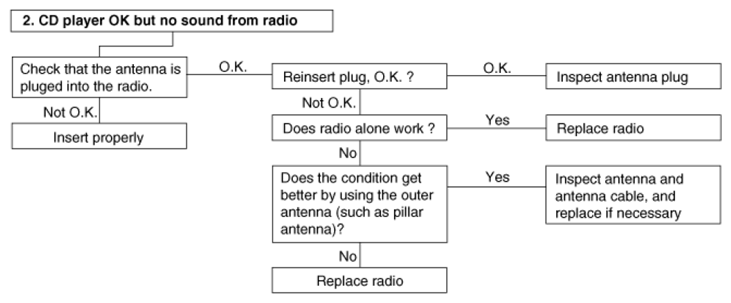

Fig 2: Customer Complaint Analysis Flow Chart - Chart 1 (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
