Repair Procedures: Removal

NOTE:
  • Take care not to scratch the center fascia panel and related parts.
  • Eject all the disc before removing the audio unit to prevent damaging the CD player's load mechanism.
  1. Disconnect the negative (-) battery terminal.
  2. Using a screwdriver or remover, remove the crash pad garnish RH (A).
    Fig 1: Crash Pad Garnish RH
    G07380520Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Apply the protective tapes to crash pad garnish and its related parts.
  3. Using a screwdriver or remover, remove the crash pad side cover (A).
    Fig 2: Crash Pad Side Cover
    G07380521Courtesy of KIA MOTORS AMERICA, INC.
  4. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).
    Fig 3: Crash Pad Lower Panel
    G07380522Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the switch connector (A) and SSB connector (B) from crash pad lower panel.
    Fig 4: Switch Connectors
    G07380523Courtesy of KIA MOTORS AMERICA, INC.
    Fig 5: SSB Connector
    G07380524Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the crash pad garnish LH (A) after removing the screws.
    Fig 6: Crash Pad Garnish LH
    G07380525Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the instrument cluster fascia panel (A) after loosening the screws.

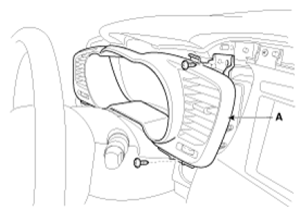

    Fig 7: Instrument Cluster Fascia Panel (1 Of 2)
    G07380526Courtesy of KIA MOTORS AMERICA, INC.
    Fig 8: Instrument Cluster Fascia Panel (2 Of 2)
    G07380527Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the center fascia lower panel (A) after loosening the screws.
    Fig 9: Center Fascia Lower Panel
    G07380528Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the connectors (A) and hose (B).
    Fig 10: Center Fascia Lower Panel Connectors & Hose
    G07380529Courtesy of KIA MOTORS AMERICA, INC.
  10. Remove the center fascia upper panel (A) after loosening the screws.
    Fig 11: Center Fascia Upper Panel
    G07380530Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the audio assembly (A) after loosening the mounting screws.
    Fig 12: Audio Assembly
    G07380531Courtesy of KIA MOTORS AMERICA, INC.
  12. Disconnect the audio connectors and cable (A), then remove the audio unit completely.

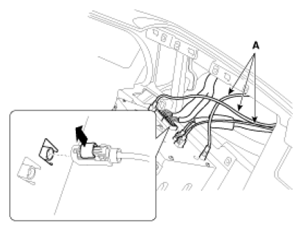

    Fig 13: Audio Connectors & Cable
    G07380532Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Lift the connector locking clip to the arrow direction, disconnect the connector.
    When assembling, install the connector and connector locking clip tightly.
    NOTE: If the CD does not eject, do not attempt to remove it because the audio unit may be damaged. Contact an authorized dealership for assistance.
