Components And Components Location: Components

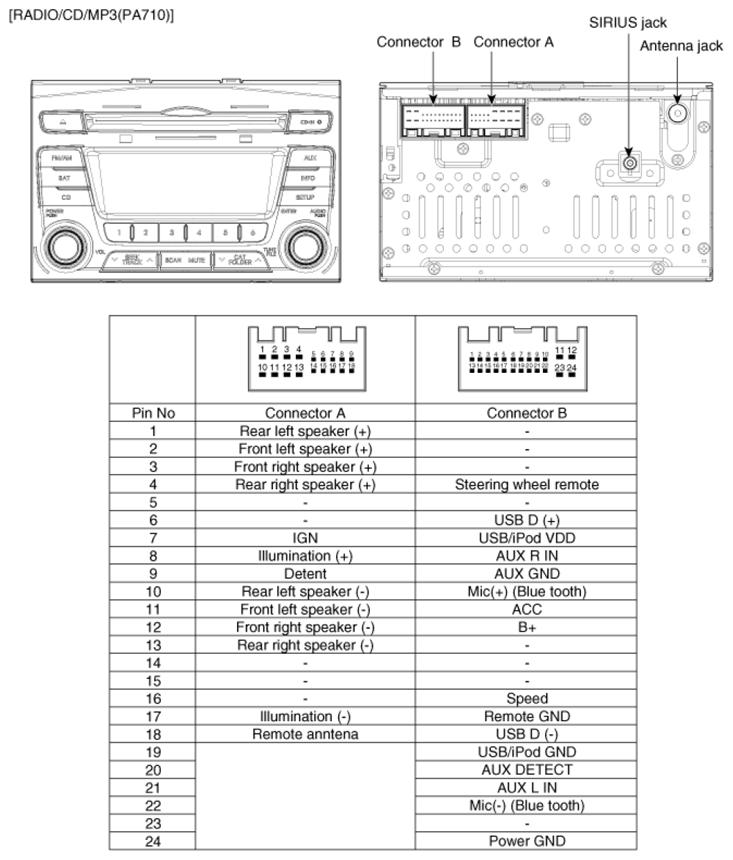

Fig 1: Audio Unit Connector Terminal Identification - RADIO/CD/MP3 (PA710)

Courtesy of KIA MOTORS AMERICA, INC.

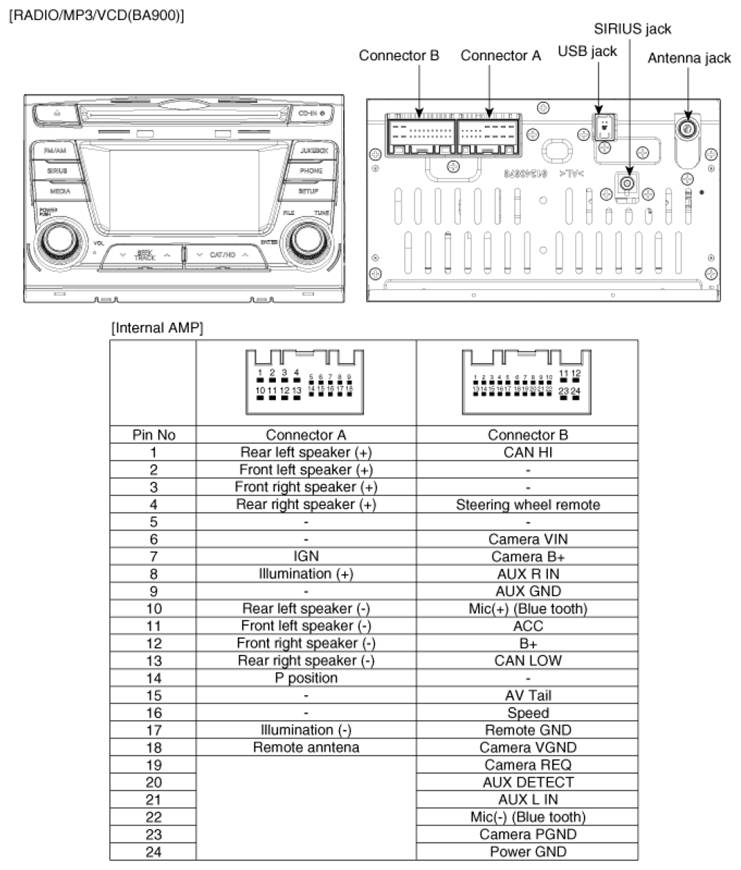

Fig 2: Audio Unit Connector Terminal Identification (Internal AMP) - RADIO/MP3/VCD (BA900)

Courtesy of KIA MOTORS AMERICA, INC.

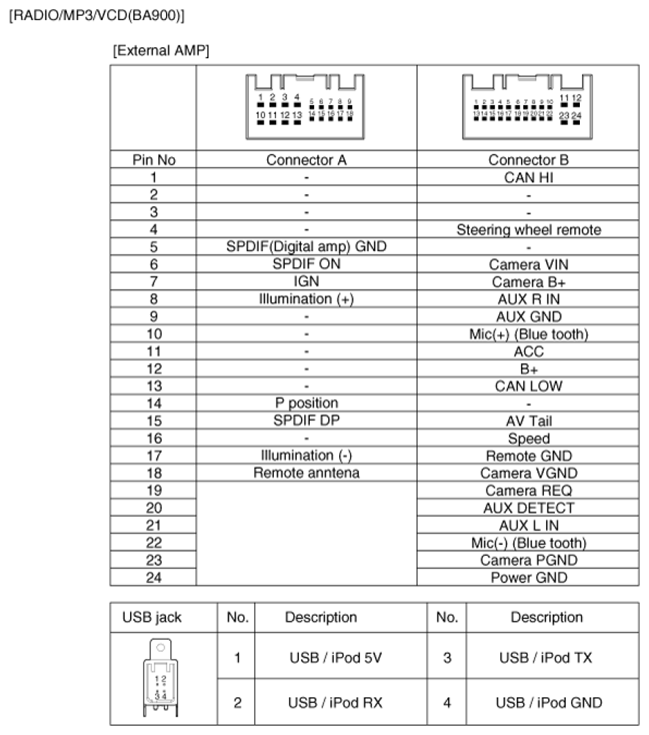

Fig 3: Audio Unit Connector Terminal Identification (External AMP) - RADIO/MP3/VCD (BA900)

Courtesy of KIA MOTORS AMERICA, INC.

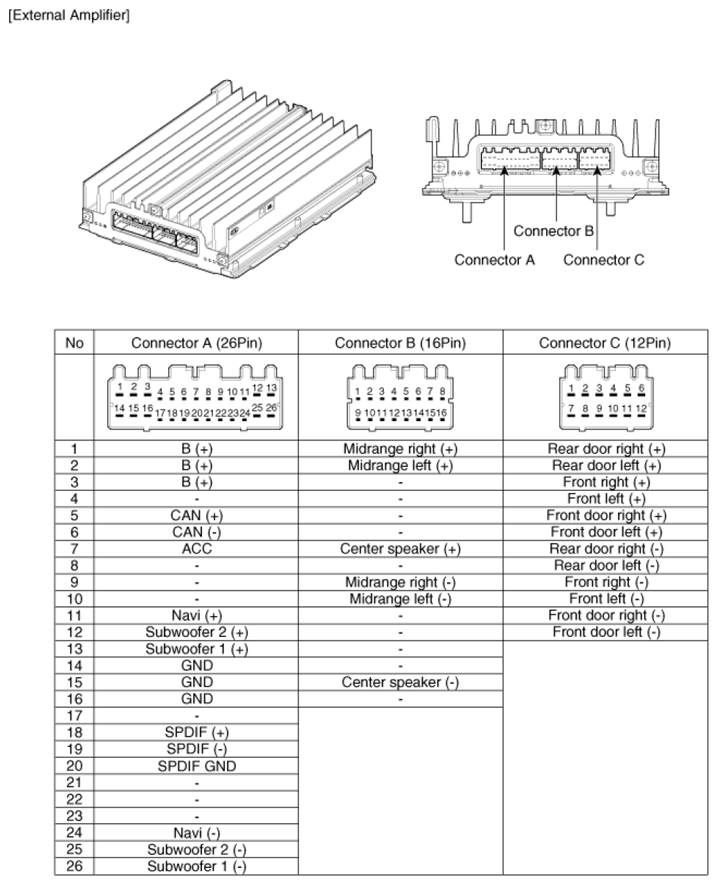

Fig 4: External Amplifier Connector Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.

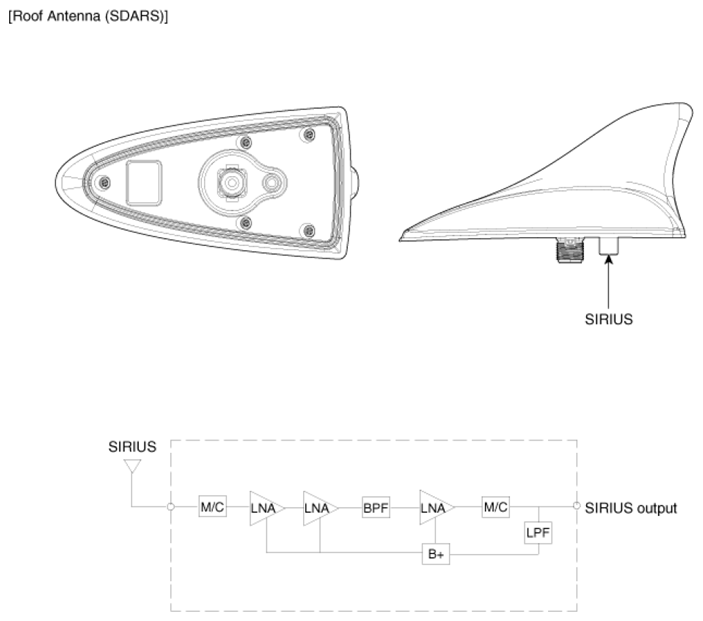

Fig 5: Roof Antenna Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.
