Repair Procedures: Inspection

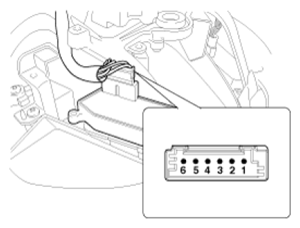

- Check the audio remote control switch (A) for resistance between connector terminals in each switch position.
LH-Audio
Courtesy of KIA MOTORS AMERICA, INC.
LH-Mute
Audio
CONNECTOR TERMINALS RESISTANCE SPECIFICATIONS CHARTSwitch Connector terminal Resistance (±5%) Volume down 2-7 6.81 kΩ Volume up 2-7 4.61 kΩ Mode 2-7 2.11 kΩ Seek up 2-7 1.11 kΩ Seek down 2-7 430 Ω Bluetooth + Voice
CONNECTOR TERMINALS RESISTANCE SPECIFICATIONS CHARTSwitch Connector terminal Resistance (±5%) Bluetooth off 2-5 12.1 kΩ Bluetooth on 2-5 34.1 kΩ Voice 2-5 3.9 kΩ Mute + Trip + Reset
CONNECTOR TERMINALS RESISTANCE SPECIFICATIONS CHARTSwitch Connector terminal Resistance (±5%) Mute 3-4 0 Ω Trip (General option) 2-5 2.55 kΩ Reset (General option) 2-5 5.55 kΩ Trip (Cruise option) 2-5 1.1 kΩ Reset (Cruise option) 2-5 4.1 kΩ
