Engine Control System Diagnosis (1 Of 3) - 2.0L
>>
DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data

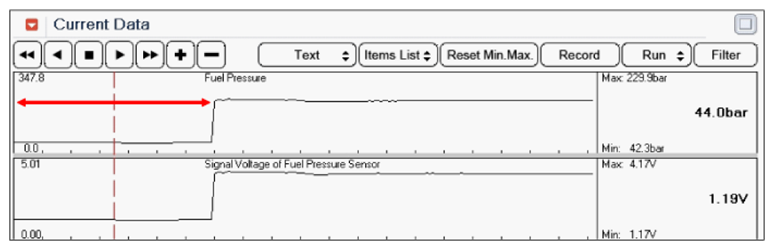

Fig 1: Screen Display - Fuel Pressure Sensor Signal Waveform (Idle State)
Courtesy of KIA MOTORS AMERICA, INC.
Normal idle state.

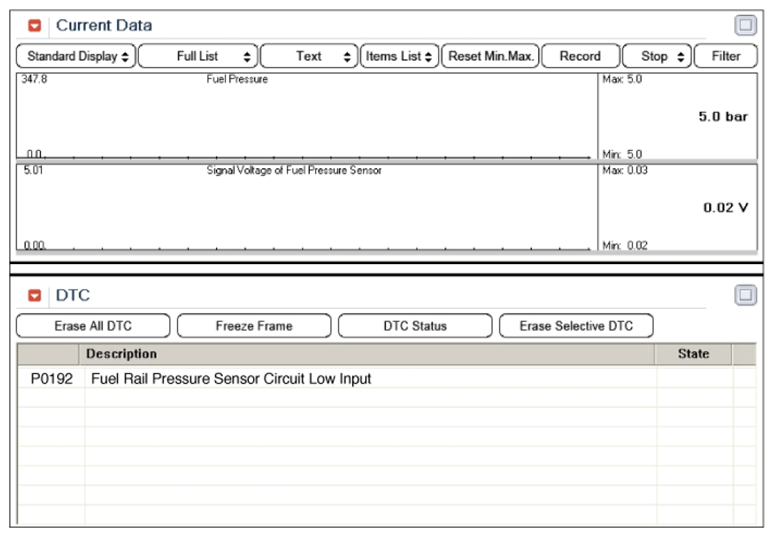

Fig 2: Screen Display - Fuel Pressure Sensor Signal Waveform (Fuel Pressure Sensor Shorts To Ground)
Courtesy of KIA MOTORS AMERICA, INC.
Sample: P0192 setting when the Signal Circuit of Fuel Pressure Sensor shorts to ground.
