Section 39 (Button Engine Start System - HEV)
>>
Schematic Diagrams
>>
Circuit Diagram (1)
Circuit Diagram (1)
WARNING:
This page is about a different variant/trim than selected.

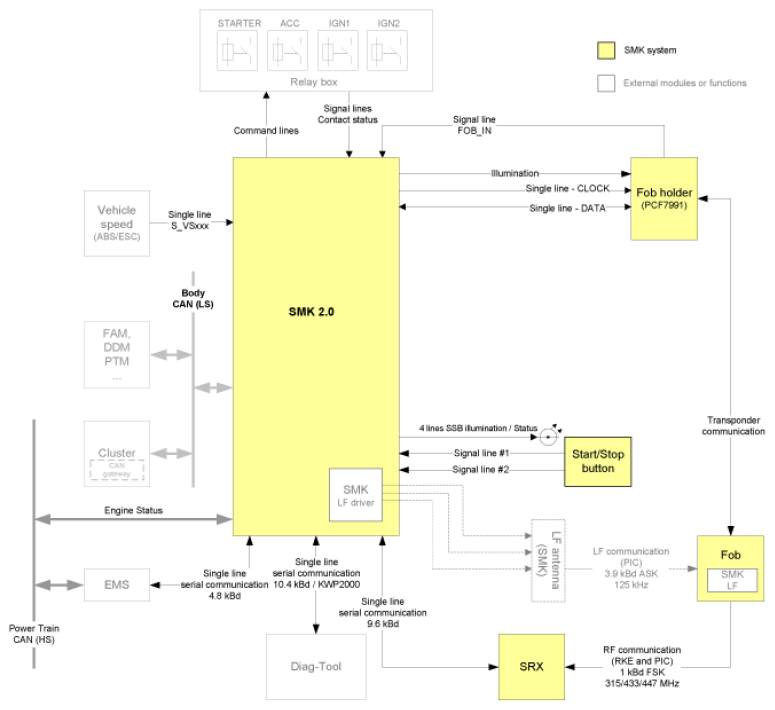

Fig 1: Button Engine Start System - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
