Repair procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to the "CRASH PAD ")
Remove the crash pad side switch assembly (A) as shown below picture.

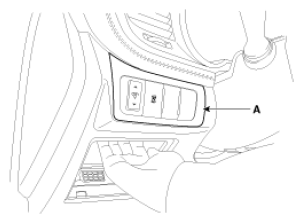

Fig 1: Identifying Crash Pad Side Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Put on gloves to protect your hands.
Disconnect the rheostat connector (A) from lower crash pad switch.

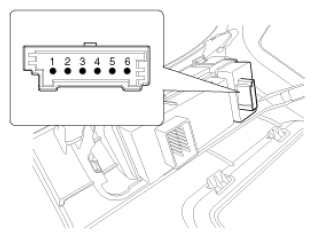

Fig 2: Identifying Rheostat Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Operate the rheostat switch and check for continuity between terminals.

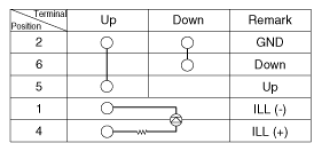

Fig 3: Rheostat Switch Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
