Section 17 (Lighting System - HEV)
>>
Overhead Console Lamp
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

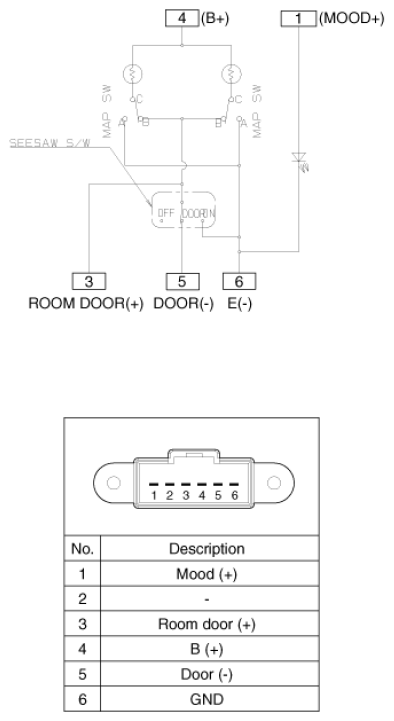

Fig 1: Overhead Console Lamp - Circuit Diagram And Connector Terminals End View
Courtesy of KIA MOTORS AMERICA, INC.
