General Information: General Description
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

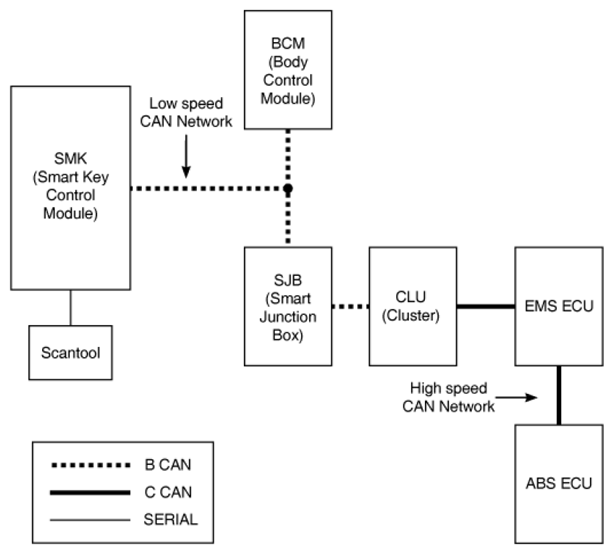

Each control module such as BCM (Body Control Module), Cluster (CLU:Cluster), SMK (Smartkey Module), SJB (Smart Junction Box) is connected each other with Body CAN*1 . Each Control Unit (Module) consists of Low and High Line. *1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.
