Glove Box Lamp Control

WARNING: This page is about a different variant/trim than selected.

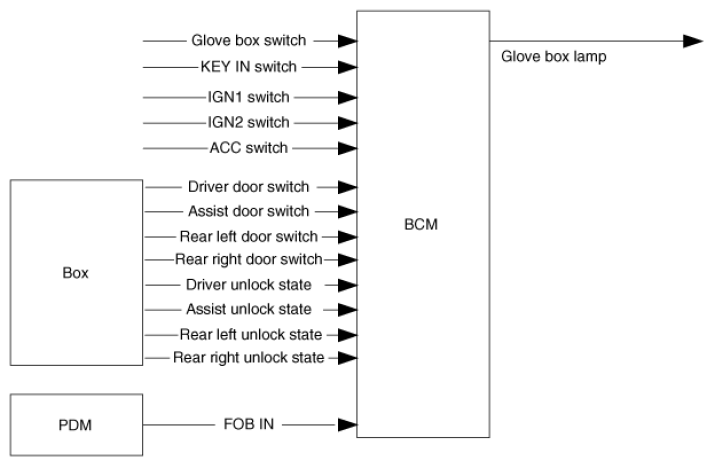

Fig 1: Glove Box Lamp Control Communication Diagram
G08309172Courtesy of KIA MOTORS AMERICA, INC.
  1. If GLOVE BOX is OPEN, LAMP is turned ON for 15min.
  2. (1) state behavior by the conditions during the KEY IN OFF->ON to timer Reset does not.
