Auto Door Unlock By Key In Condition
WARNING: This page is about a different variant/trim than selected.

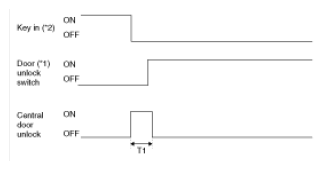

- ALL DOOR UNLOCK signal is output at IGN KEY IN→OUT. But, UNLOCK state that is ALL DOOR to UNLOCK does not output.
T1: 0.5 ± 0.1sec
*1 ON(UNLOCK): Driver Unlock State or assist Unlock State or rear left Unlock state or rear right unlock state = UNLOCK OFF (LOCK): Driver Unlock State & assist Unlock State & rear left Unlock state & rear right unlock state = LOCK
*2 KEY IN ON: Key in switch ON or ACC =1 or IGN1 ON or IGN2 ON
KEY IN OFF: Key in switch OFF and ACC =0 and IGN1 OFF and IGN2 OFF
