Section 25 (Smart Key System - HEV)
>>
Smart key unit
>>
Components and Components Location
>>
Component (2)
Component (2)
WARNING:
This page is about a different variant/trim than selected.

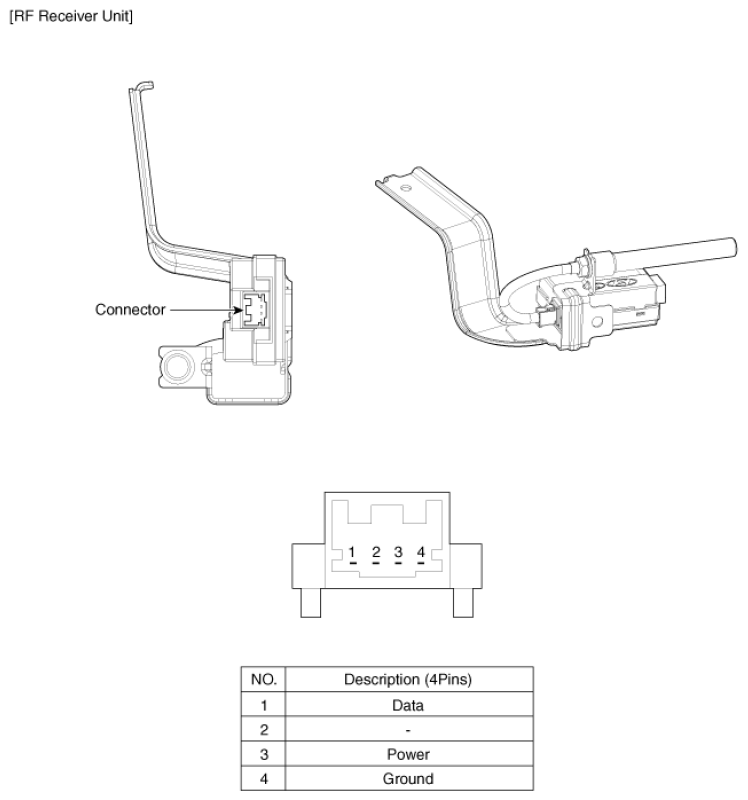

Fig 1: RF Receiver Unit Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
