Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

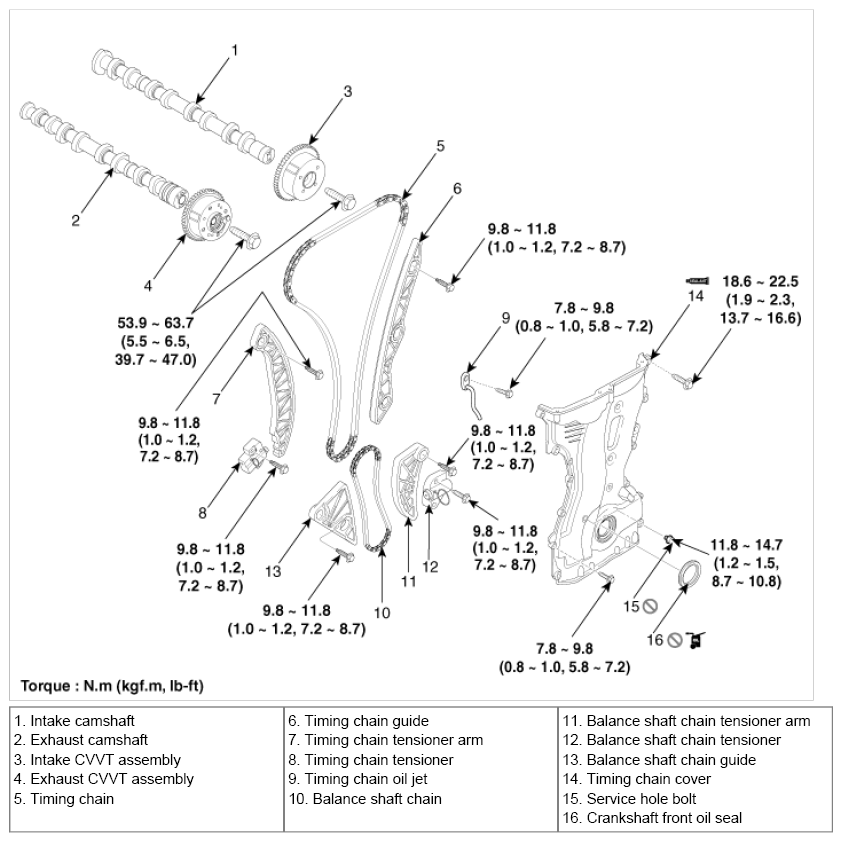

Fig 1: Timing Chain Components With Torque Specifications
G08312360Courtesy of KIA MOTORS AMERICA, INC.
