Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

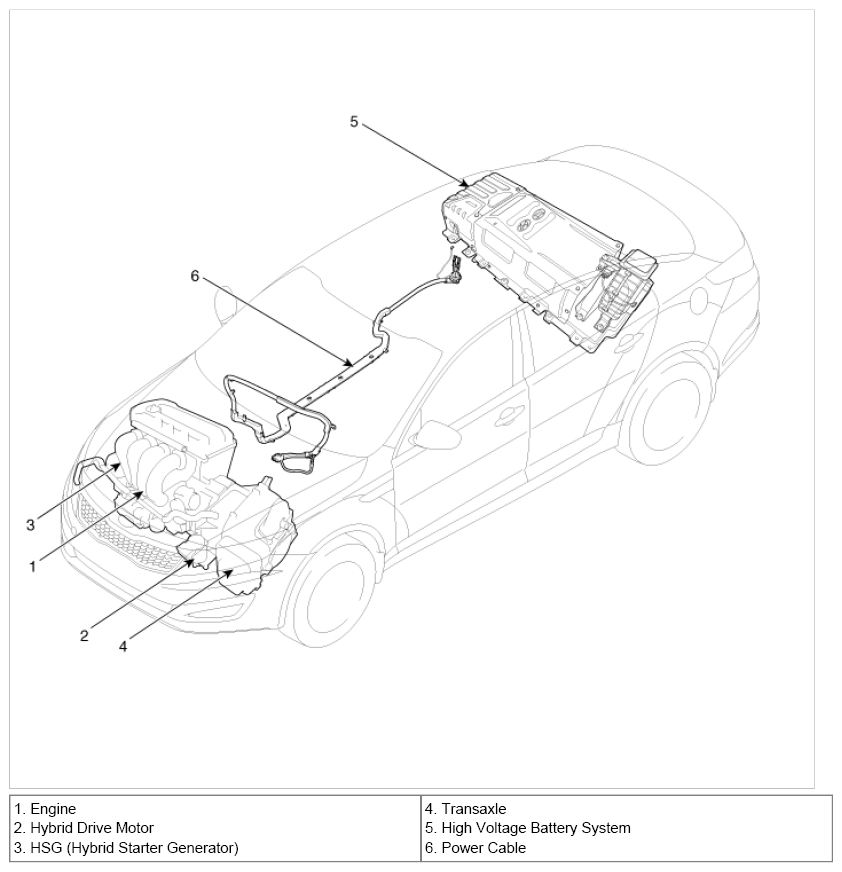

Fig 1: Identifying Engine, Hybrid Drive Motor, HSG, Transaxle, High Voltage Battery System And Power Cable
G08309804Courtesy of KIA MOTORS AMERICA, INC.
