Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Place the shift lever into the "N" position.
Remove the air duct (A).

Fig 1: Air Duct
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner assembly. Refer to "INTAKE MANIFOLD ".
1. Disconnect the breather hose (A) and brake booster intensifier hose.
2. Disconnect the air intake hose and then remove the air cleaner assembly (B).

  Fig 2: Breather Hose & Air Cleaner Assembly
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery and the battery tray. Refer to BATTERY .
Disconnect the inhibitor switch connector (A).
Remove the shift cable mounting nut (B).

Fig 3: Identifying Inhibitor Switch Connector & Nut
Courtesy of KIA MOTORS AMERICA, INC.

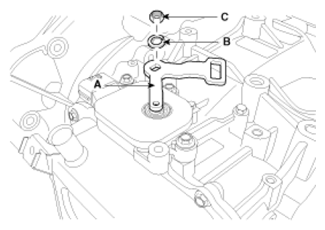

Remove the manual control lever (A) and the washer (B) after removing a nut (C).

Fig 4: Identifying Manual Control Lever, Washer & Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the inhibitor switch (A) after removing the bolts (2 ea).

Fig 5: Identifying Inhibitor Assembly

Courtesy of KIA MOTORS AMERICA, INC.
