Bank 1/Intake

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the OTS (A).
  3. Disconnect the CVVT oil control valve connector (B).
  4. Remove the installation bolt (C), and then remove the valve from the engine.

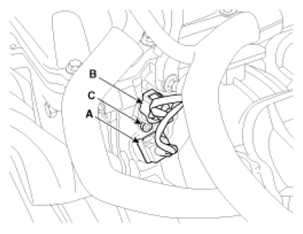

Fig 1: CVVT Oil Control Valve Component Location (Intake)
G07422653Courtesy of KIA MOTORS AMERICA, INC.
