Repair Procedures: Inspection

Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and washer switch.

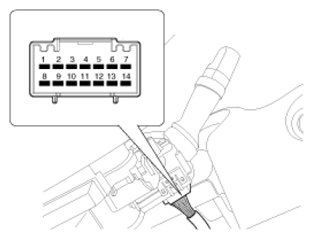

Fig 1: Identifying Wiper Switch Connector End View

Courtesy of KIA MOTORS AMERICA, INC.

Wiper Switch

Fig 2: Wiper Switch Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

Washer Switch

Fig 3: Washer Switch Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

Rear Wiper Switch

Fig 4: Rear Wiper Switch Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

Rear Washer Switch

Fig 5: Rear Washer Switch Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
