Monitor Scantool Data

  1. Connect scantool to Data Link Connector(DLC).
  2. Engine "ON".
  3. Monitor the "CAN Communication Service Data(Engine Clutch Command Pressure)" parameters on the GDS.

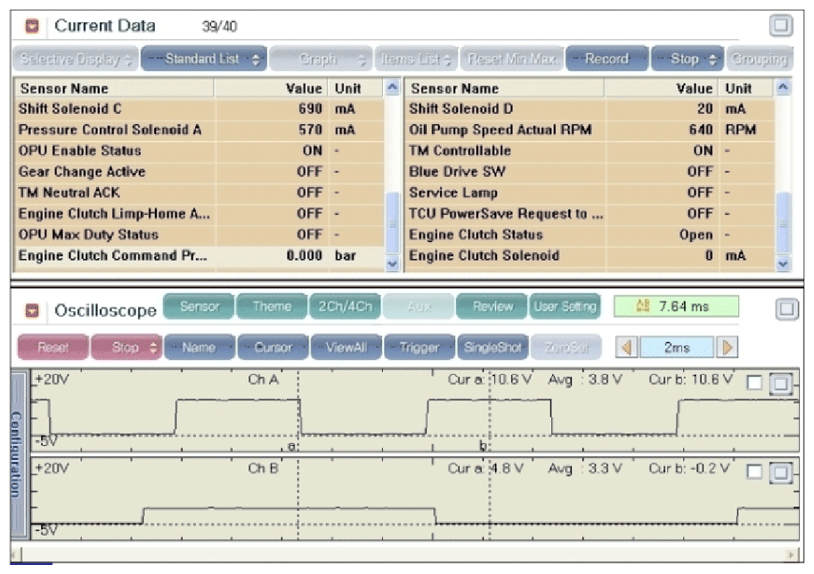

    Fig 1: Display - CAN Communication Current Data And Hall Signal Waveform (Normal Situation)
    G08311709Courtesy of KIA MOTORS AMERICA, INC.

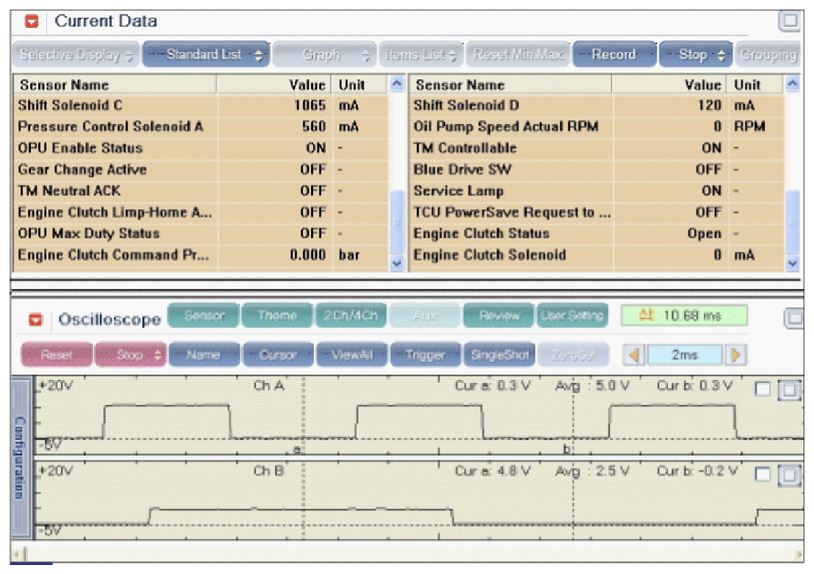

    Fig 2: Display - CAN Communication Current Data And Hall Signal Waveform (CAN Line Error)
    G08311710Courtesy of KIA MOTORS AMERICA, INC.
  4. Is measured current data within specific?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM's memory was not cleared.

      Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
