Signal Waveform & Data

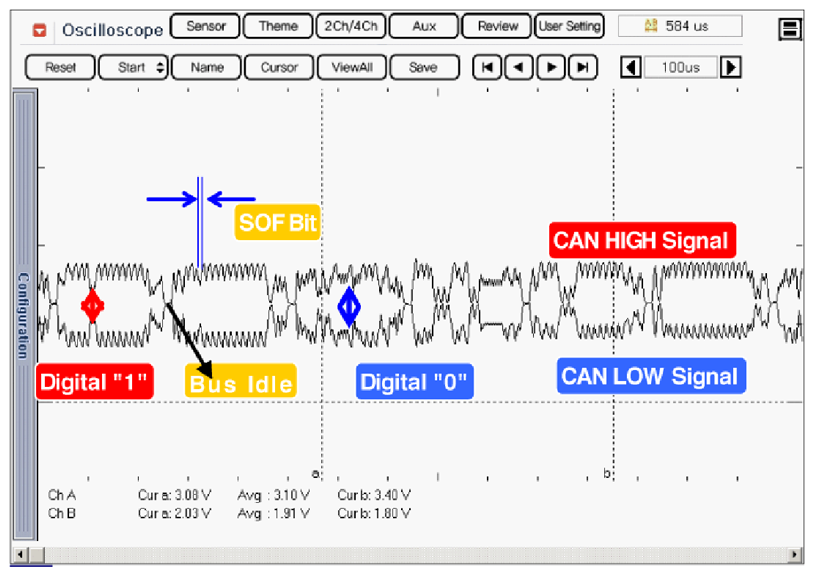

Fig 1: Display - PCM CAN Communication Waveform
G08311704Courtesy of KIA MOTORS AMERICA, INC.

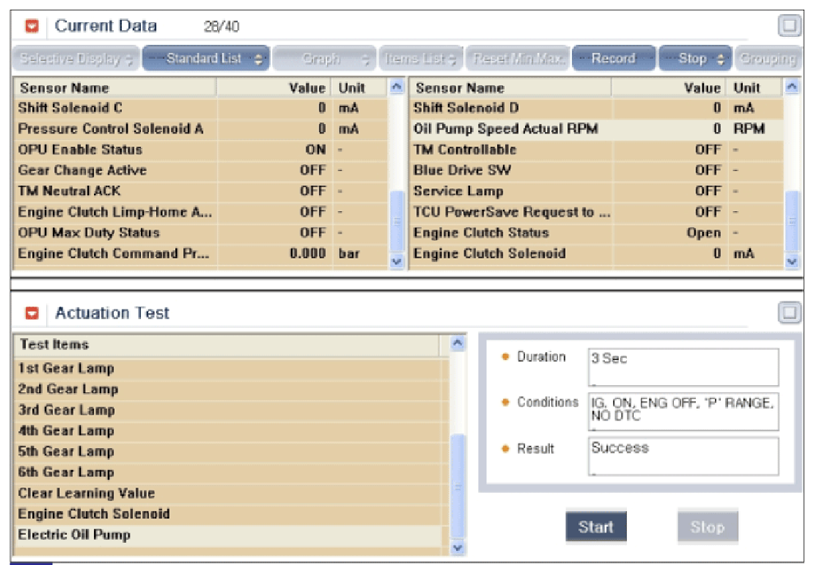

Fig 2: Display - Oil Pump Actuation Test And Current Data (Key On)
G08311705Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Display - Oil Pump Actuation Test And Current Data (During Operating Actuating)
G08311706Courtesy of KIA MOTORS AMERICA, INC.

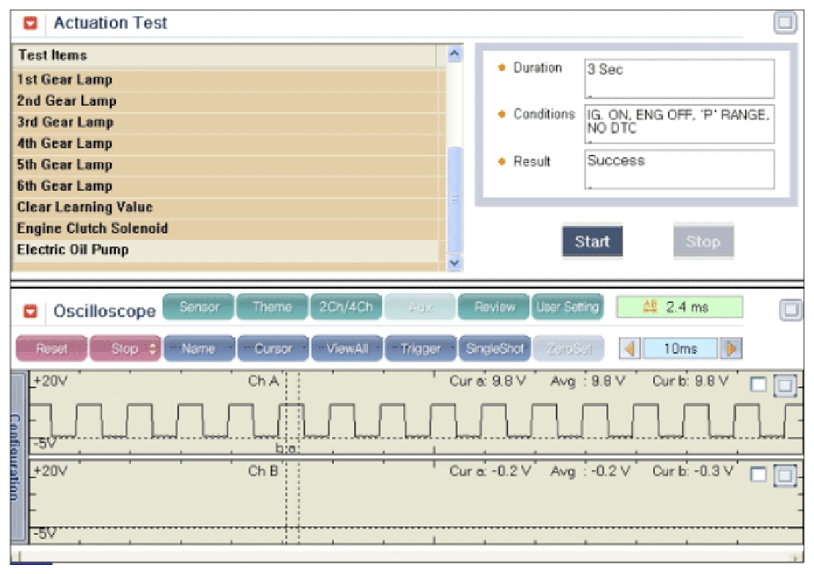

Fig 4: Display - Electric Oil Pump Actuation Test And Hall Signal Waveform (Key On)
G08311707Courtesy of KIA MOTORS AMERICA, INC.

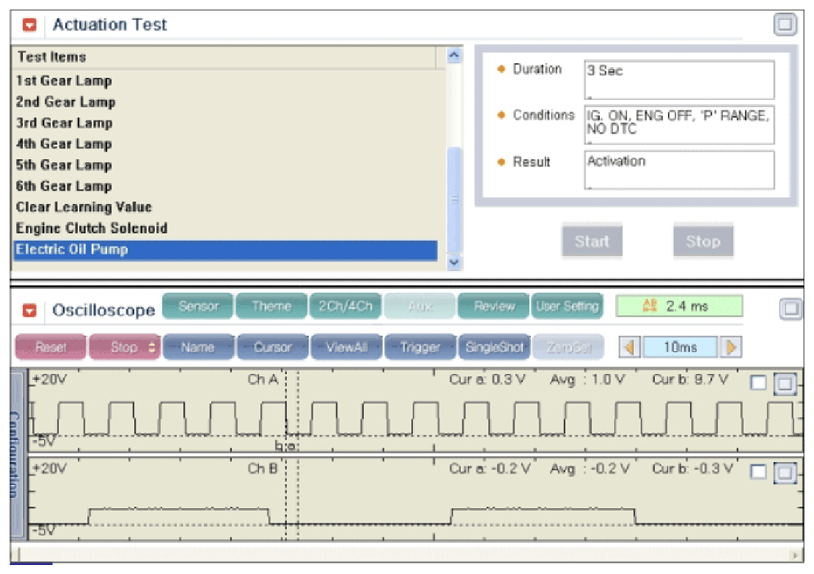

Fig 5: Display - Electric Oil Pump Actuation Test And Hall Signal Waveform (During Operating Actuating)
G08311708Courtesy of KIA MOTORS AMERICA, INC.
