Control Circuit Inspection

Open Circuit Inspection
1. IG KEY "OFF".
2. Disconnect "OPU" & "PCM/TCM" connector.
3. "Measure resistance between PWM control line of OPU connector" and PWM control line of PCM/TCM.
  Specification: Approx. 0 Ω

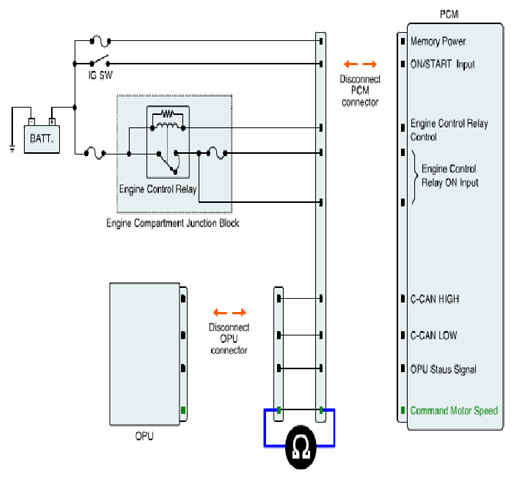

  Fig 1: Measuring Resistance Between PWM Control Line Of OPU Connector And PWM Control Line Of PCM/TCM
  Courtesy of KIA MOTORS AMERICA, INC.

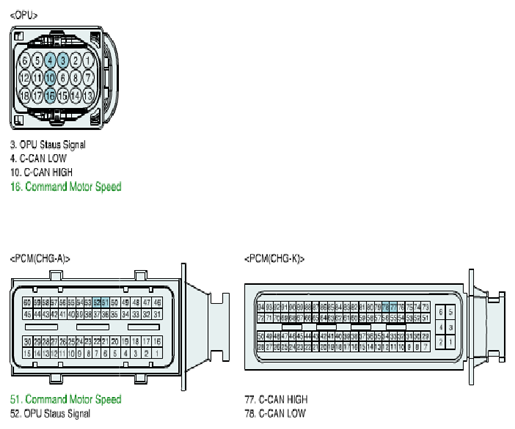

  Fig 2: Identifying OPU And PCM Connector Terminals
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  YES
  - Go to next step.
  NO
  - Check circuit open of harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Short Circuit Inspection
1. Ignition "OFF".
2. Disconnect "Oil Pump Unit connector and PCM/TCM connector.
3. Measure a resistance between "PWM line of oil pump unit and Battery power.
  Specification: Infinite

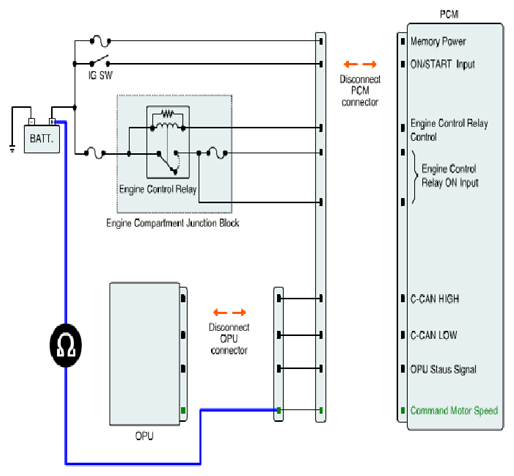

  Fig 3: Measuring Resistance Between PWM Line Of Oil Pump Unit And Battery Power
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 4: Identifying OPU And PCM Connector Terminals
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  YES
  - Go to next step.
  NO
  - Check harness for short circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Chassis Ground Short Inspection
1. Ignition "OFF".
2. Disconnect "Oil Pump Unit connector and PCM/TCM connector.
3. Measure a resistance between "PWM line of oil pump unit and chassis ground.
  Specification: Infinite

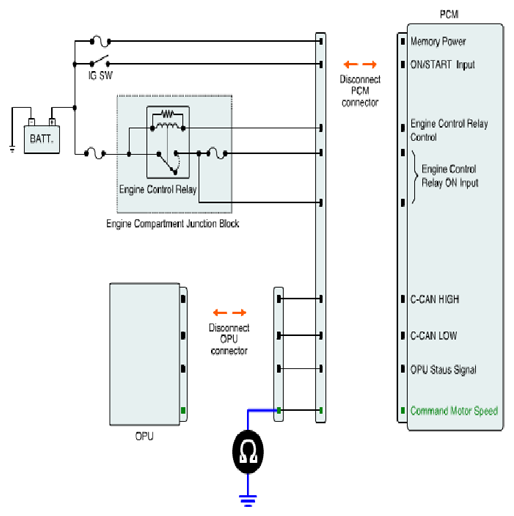

  Fig 5: Measuring Resistance Between PWM Line Of Oil Pump Unit And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 6: Identifying OPU And PCM Connector Terminals
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Check harness for short circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
