Rear Power Window Switch

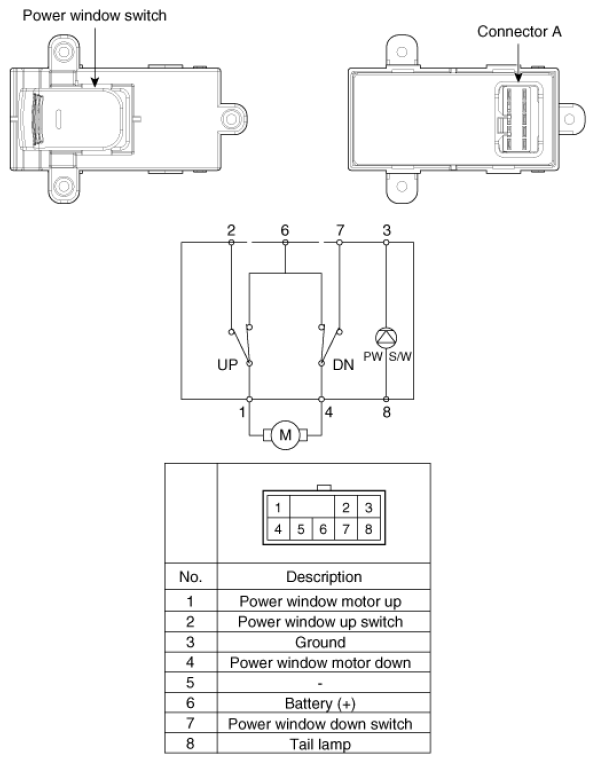

Fig 1: Rear Power Window Switch - Circuit Diagram

G08309406

Courtesy of KIA MOTORS AMERICA, INC.
