Passenger Power Window Switch

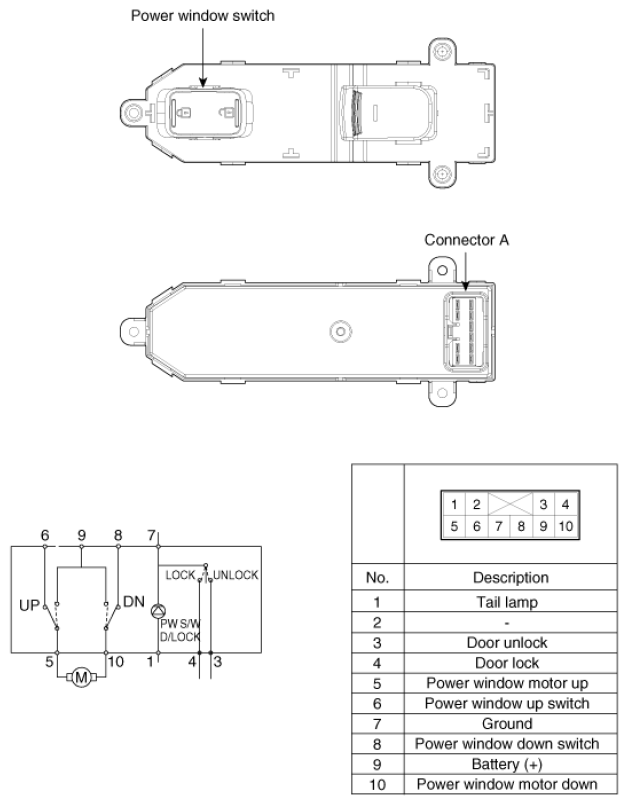

Fig 1: Passenger Power Window Switch - Circuit Diagram

G08309405

Courtesy of KIA MOTORS AMERICA, INC.
